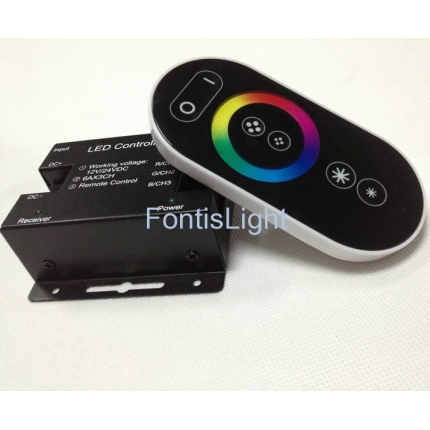

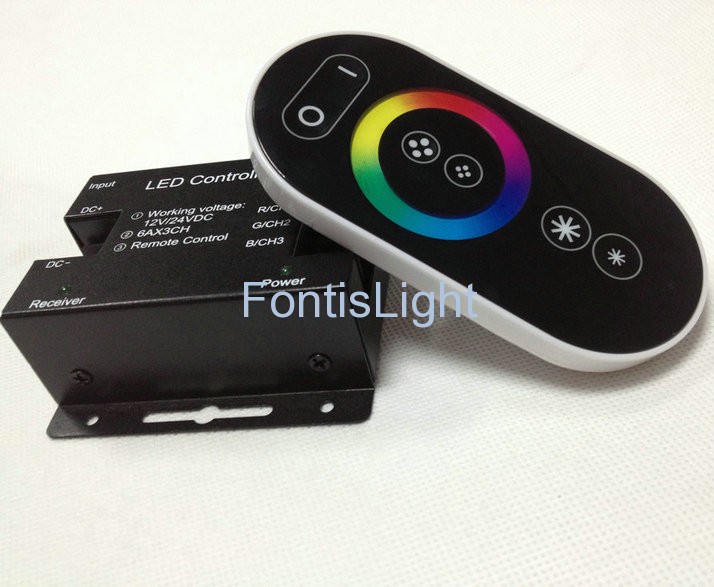

Wireless Touch RGB Controller

Model：FL-CW-RB
Size：83.5*78.6*33mm
Power：216W
Wireless Touch Controller for RGB system 12W, 6A of each channel

Inquire

Consult us

Skype Email 0086-755-86597835

Technical parameters:
- Working temperature: -20 to 60℃
- Supply voltage: 5V, 12 and 24V DC (optional) (for orders specify voltage)
- Output: 3 channels
- Connecting mode: common anode
- Transmission/receiving frequency: 433.92MHz
- External dimensions (L x W x H): 83.5 x 78.6 x 33mm
- Packing size (L x W x H): 200 x 135 x 45mm
- Net weight: 227g
- Gross weight: 379g
- Output current: <6A (each channel)
- Output power: <216W
Presentation mode:
- Gradual change model
- Touch on button again under monochrome mode condition, RGB strip will be changed into gradual
- change mode
- Increasing color button will speed up the color change, decreasing color button will slowdown
Hopping mode: under gradual change mode condition
Touch on button
RGB strip will be changed into hopping mode
Increasing color button will speed up the hopping, decreasing color button will slowdown
Under gradual change or hopping mode, touching on switch will change one to the other
Close the RGB strip and restart It if you want to enter monochrome mode
Pay attention: the change of above two presentation mode need 4 seconds
Input voltage of remote control must be the same as RGB strips
Match the color of output wiring when connecting
When the color doesn't match, for example, it displays blue when touch green, or displaysgreen

When touching blue, please check whether the wiring is correct, in this case, exchange each other
