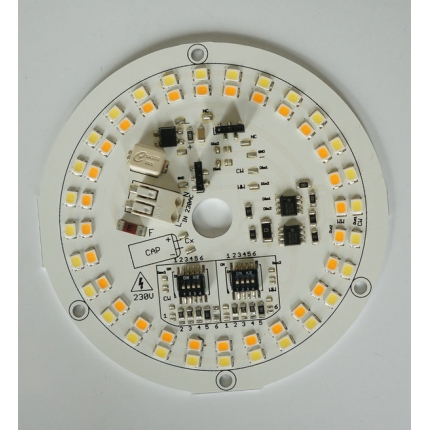

CCT adjustable led module 230V

Model: FL-R2835W-WW56HD
Size: Φ88mm*1.5mm
Power: 12W+12W
Beam Angle: 120deg

Introduction

CCT adjustable led module 230V


Features:

1 . 88mm 230V High voltage LED Module with CCT*1
2. PCB THICKNESS: 1.5mm, Diameter: 88mm
3. Working Voltage: 230V AC (220-240), possible 110VAC
4. LED Efficiency: 120-130 lm/W (or adapted to customer's request)
5. LED quantity: 2*28pcs 0.5W 2835 SMD LED
6. Unique possibility of adjust the brightness and CCT
in 16 steps/color (This gives you total 256 ability to adjust)
7. Unique ability to connect various sensors and controllers that use PWM or 0-10V control
(BT, 2.4GHz, PIR and other)
8. Adjustable CCT (°K): 2800-6500°K in multisteps
9. Adjustable Luminous Flux(lm): 2*0-1200lm, total max 2400lm (or adapted to customer's request)
10. LED View Angle(2
θ1/2): 120 degree
11. Adjustable Output Power: 2*0-12W, total max 24W (or adapted to customer's request)
12. Supporting SCR (Triac) dimming
*2

BENEFITS:
Easy for installation

Excellent EMC performance
No driver design, easy for producing and maintenance, save costs
No driver design easily pass various testing and certification
Supporting SCR dimming *2
Use constant current IC instead of led driver, less components but more stable solution

Applications:
Unique adjustment the brightness and CCT it's ideal light source for flat ceiling lamp, downlight lamp, led
pendent lights, etc

Specifications
Model FL-R2835W-WW56HD
Installation for Downlight and Ceiling Light
Material Aluminum PCB + SMD LED + Electric components
Application condition Indoor
Color White 2800-6500°K
Size Φ88mm*1.5mm
