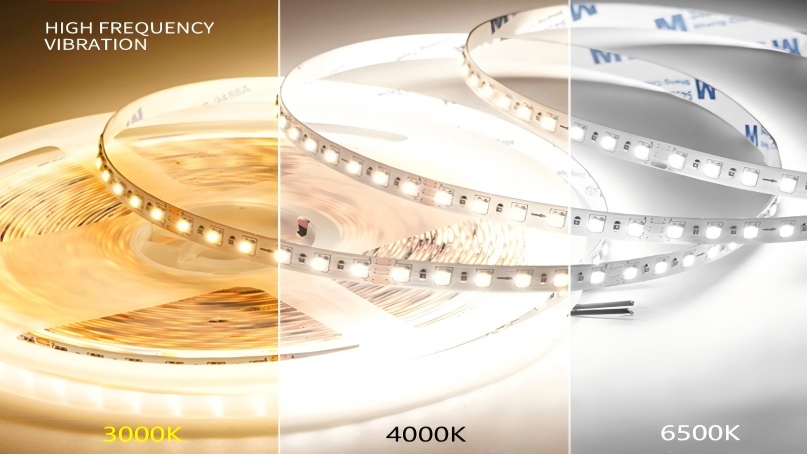

What is SMD3528 led strip light?

SMD3528-led lighting source

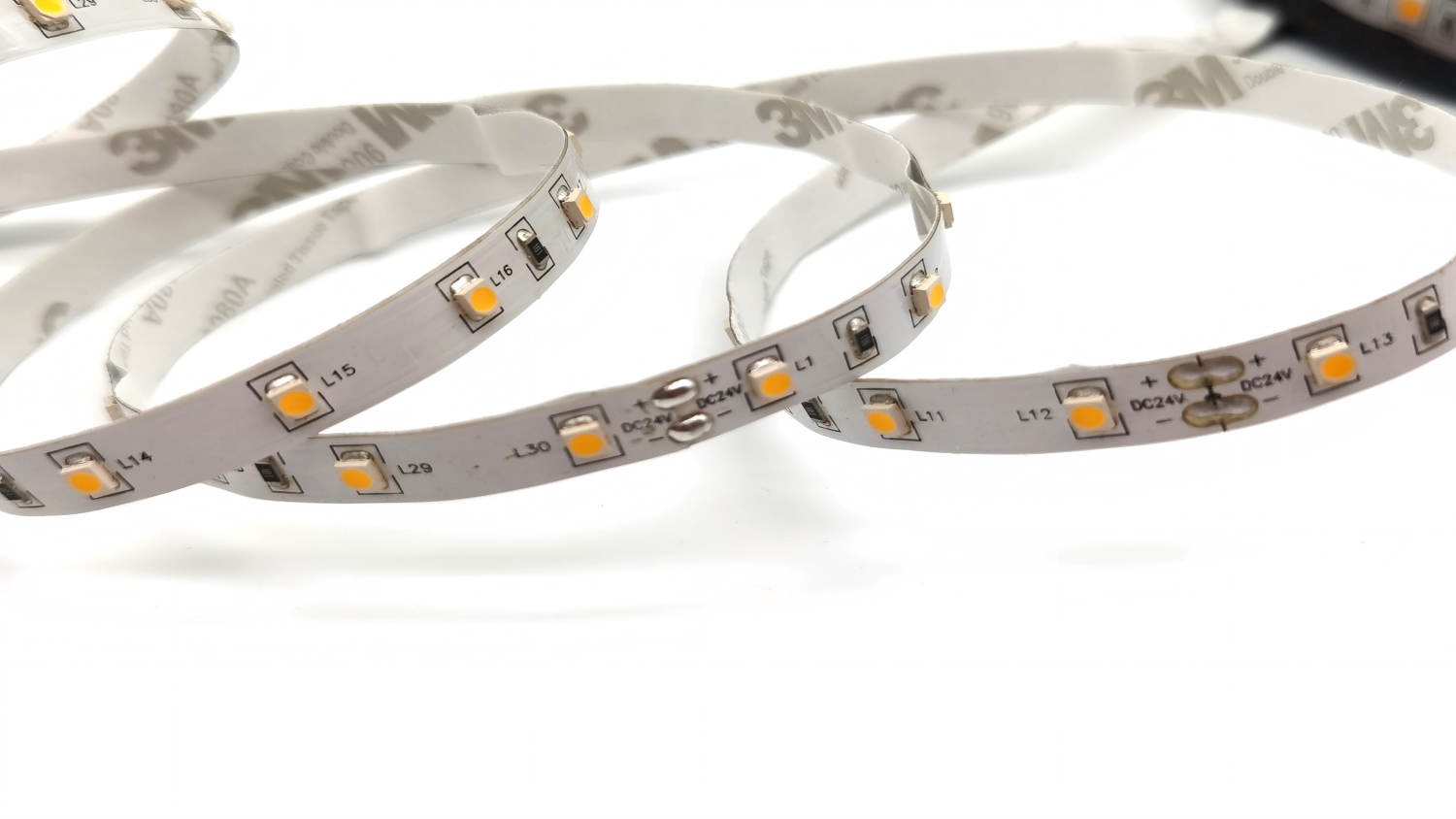

SMD3528 led strip light is made by SMD3528 led chips.

The size of SMD3528 is 3.5MM*2.8MM, 0.06W/PCS,6-8lm/pcs.

SMD3528 led strip light is a very long used history led strip light.

It is widely using in-home lighting, cabinet lighting, car lighting, etc.

Where are SMD3528 led strip light most suitable using in?

led-cabinet-light-in-shelfFrom the date sheet we know SMD3528 power is small,0.06w/pcs,6-8lm/pcs.

Normally we have 60led/m-4.8w/m, 120led/m-9.6w/m,240led/m-19.2w/m.

Power per meter, not big means, not very brightness. Then we use less in  main lighting.

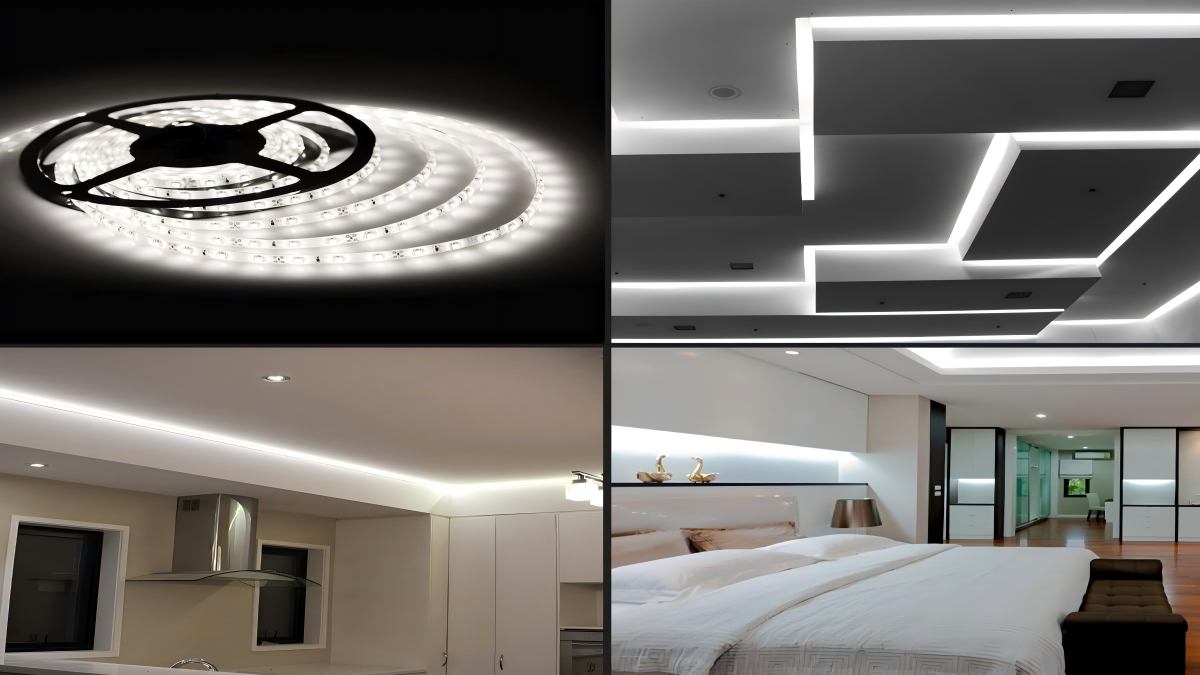

SMD3528 led strip light is used more in small place detail lighting.

Such as cabinet lighting, shelf lighting, cupboard lighting, wardrobe lighting, etc.

Does SMD3528 LED strip light to have waterproof led strip light?

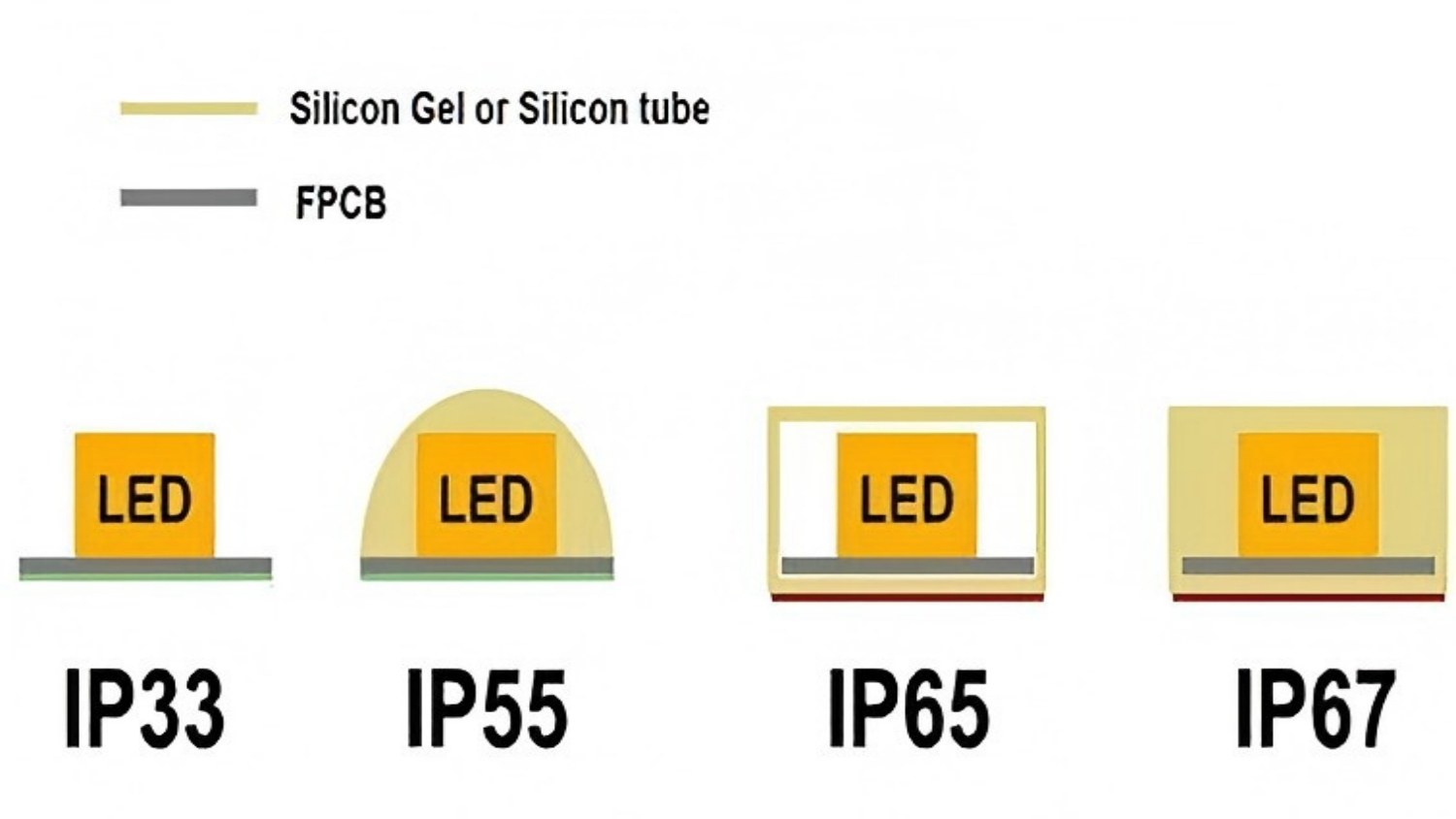

led-strip-waterproof-level-rangeWe offer different waterproof grade SMD3528 led strip light.

IP20 / IP33 -Not waterproof, this only use for indoor

IP55- Silicon surface dropping waterproof. This is changing the lighting vision. We also use this indoor.

IP65- Silicon tube waterproof. We suggest using this raining but don't drop into the water.

IP67/68 - This can use for swimming pool

You can check our other post about waterproof led strip light.

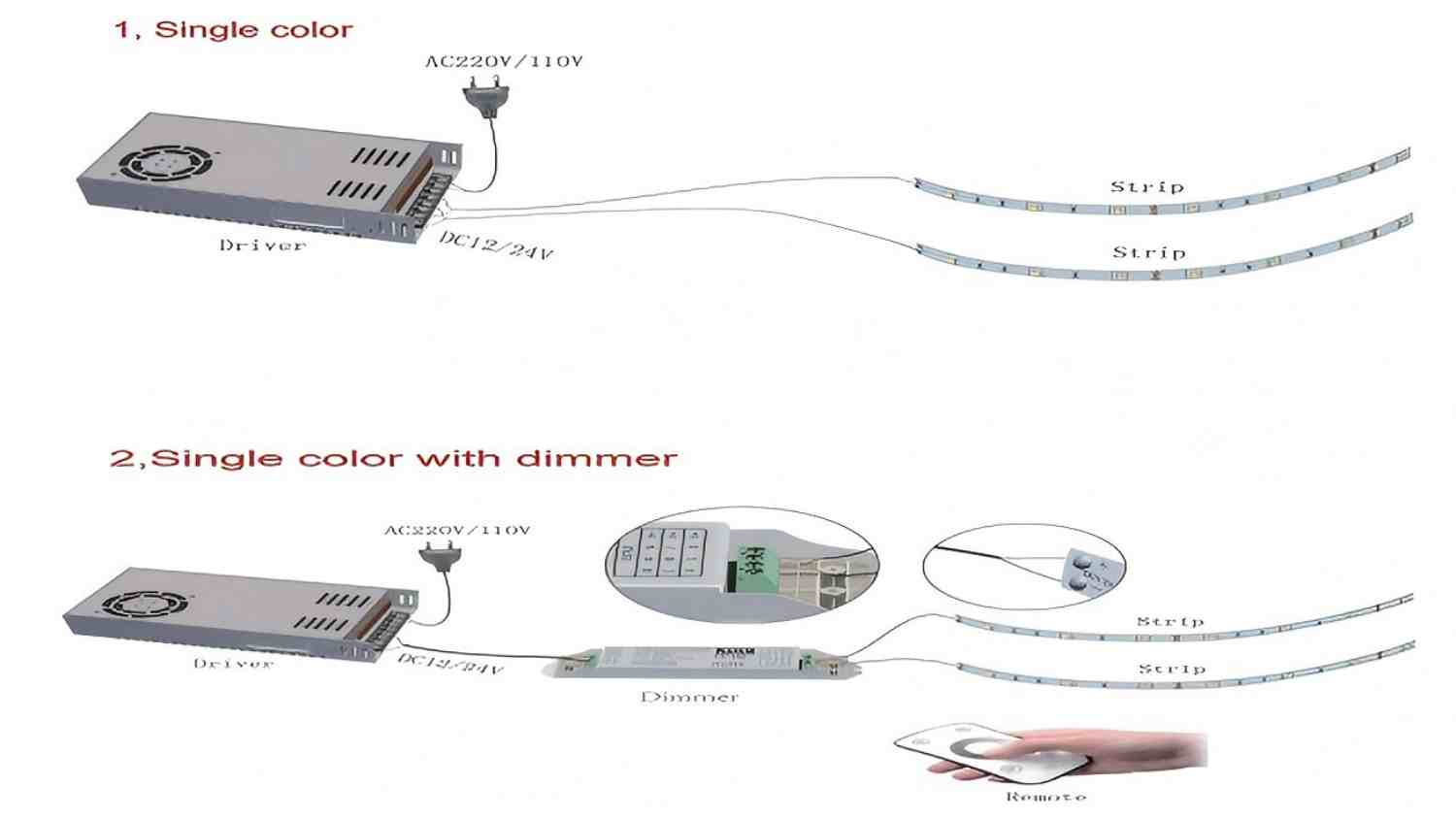

How to connect SMD3528 led strip light to the power supply?

When we are using the SMD3528 led strip light, we need to use a led power supply.

If some of the lighting projects need dimming function, we also need to connect to the dimmable power supply or dimmable controller.

Here we show you how to connect the strip light to the power supply.

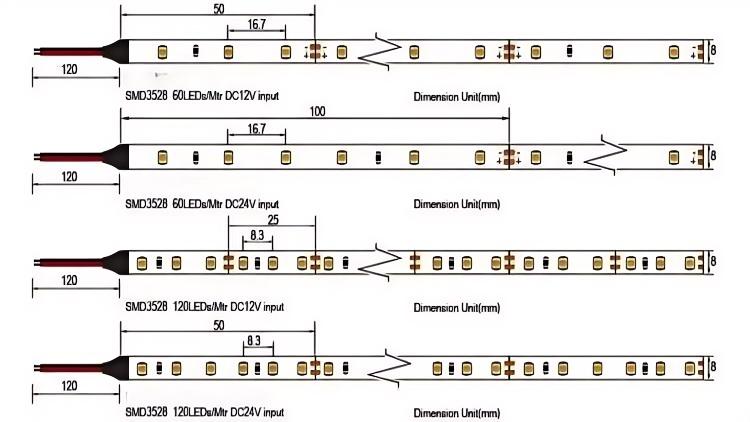

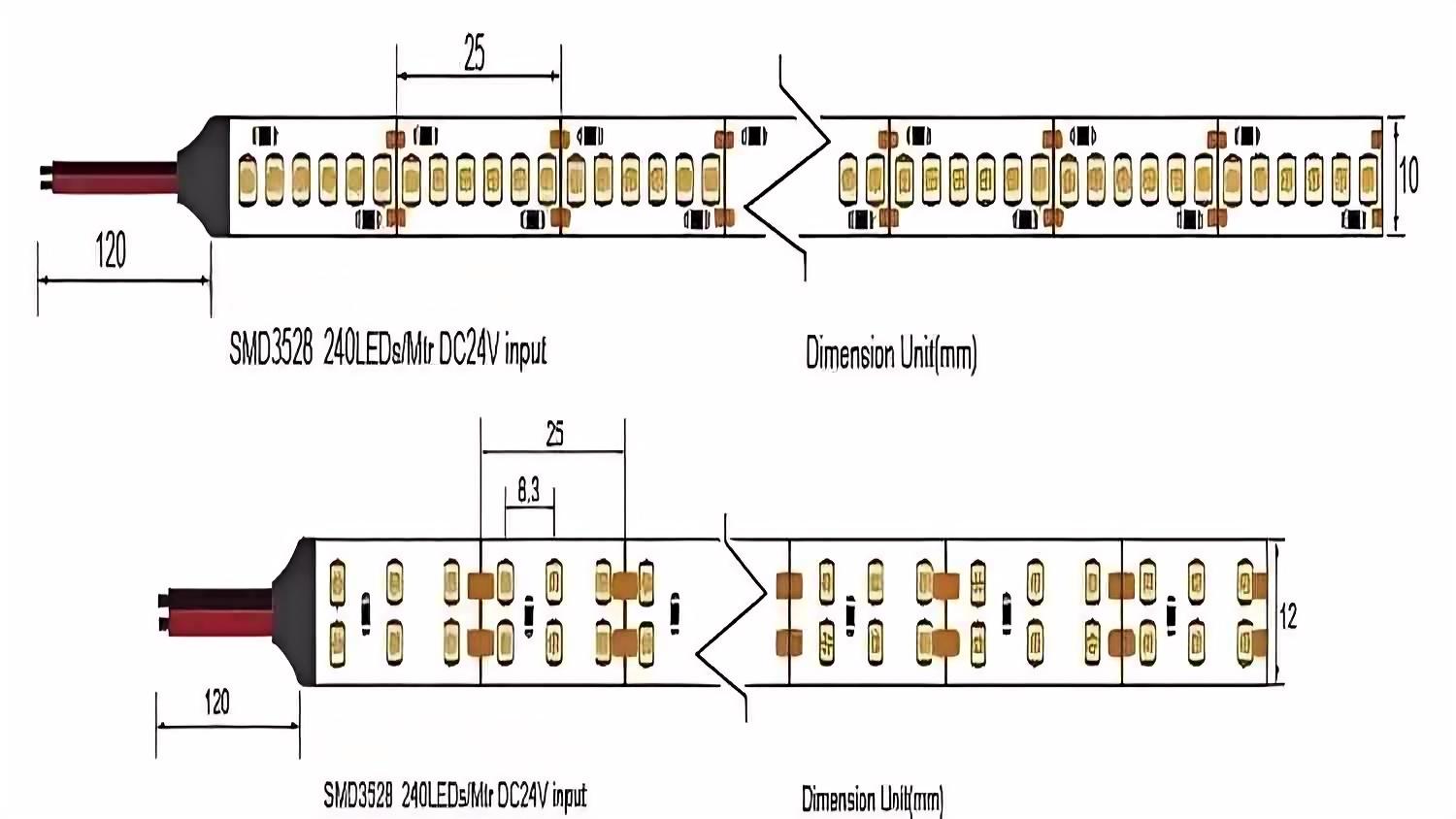

Product Specifications

3528 LED Strip Light Accessories

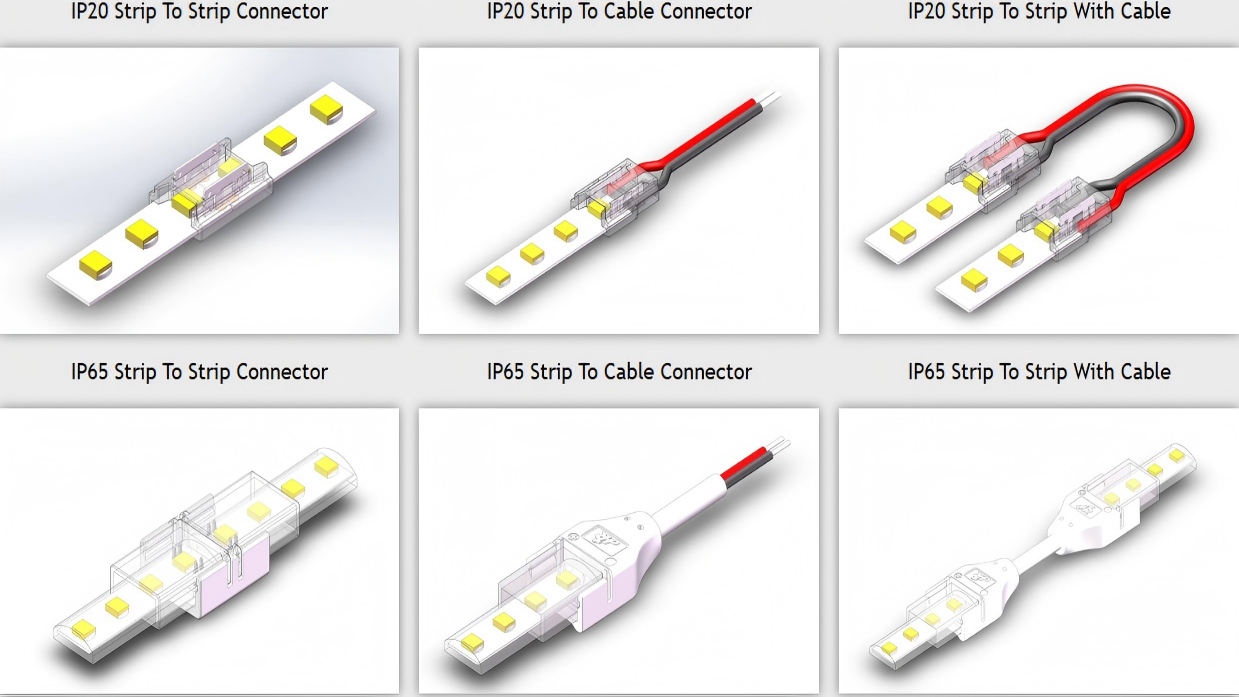

Non-Waterproof  Types Led Strip Light Connector

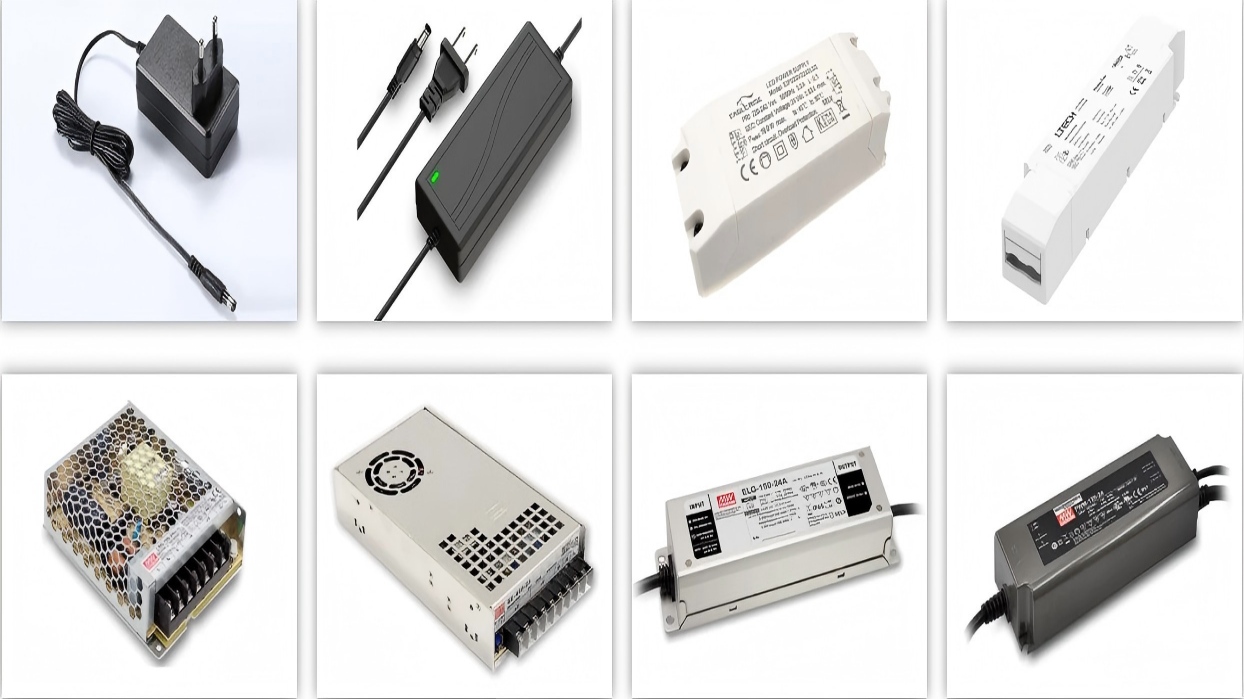

LED power supply
