Key Features

 - Smart Motion Detection: Automatically turns lights on when motion is detected and off after 30 seconds of inactivity, with a countdown reset function for continuous presence.

- Adjustable Sensitivity: Both motion detection distance and light sensor sensitivity can be customized for different environments.

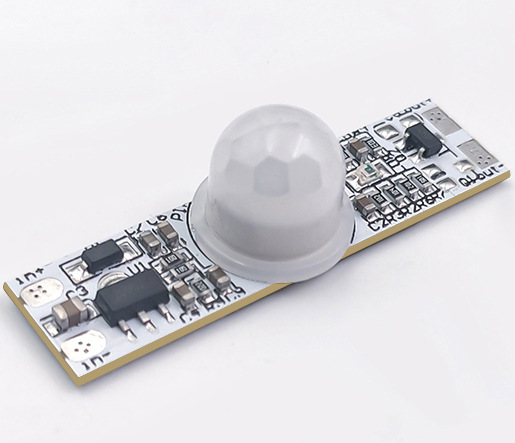

- Low Profile Design: Ultra-thin PCB design (just 1mm thick) allows for easy, discreet installation in cabinets and profiles.

- Reliable & Durable: Backed by a 2-year warranty, ensuring stable performance in everyday use.

Technical Specifications：

-Input Voltage DC12V (Constant Voltage)

-Max Load Current 3A

-Max Load Power 36W

-Lens Opening Size Φ10mm

-Light Sensor J1 short to disable (default), J1 open to enable. Sensitivity adjustable.

-Sensing Distance 4m (default, center), adjustable

-Operating Environment Temperature: -15℃ ~ 40℃, Humidity: 30% ~ 50%

-PCB Dimensions 38mm (L) × 10mm (W) × 1mm (H)

-Warranty 2 years (excludes damage from high voltage or misuse)

 How It Works：

1. Power On: The light activates immediately when powered up.

2. Auto-Off: If no human motion is detected for 30 seconds, the light turns off automatically.

3. Countdown Reset: If motion is detected within the 30-second window, the timer resets from the last detection point.

 Ideal Applications：

 LED cabinet lights, under-cabinet lighting, aluminum profile strip lights, display case lighting, wardrobe lighting, and other smart home & commercial lighting solutions.
